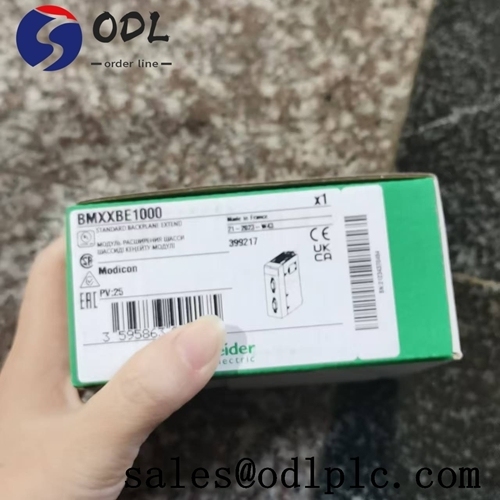

Backplane Expander Schneider BMXXBE1000 For Modicon M340 Multi Rack

The BMXXBE1000 backplane expander enhances your Modicon M340 automation platform by enabling multi-rack configurations. This robust solution increases system capacity while maintaining seamless connectivity for additional modules.

• Rack Expansion: Effortlessly increases module capacity to meet growing system demands
• Enhanced Connectivity: Provides reliable communication channels for additional modules
• Status Monitoring: Includes 2 female SUB-D 9 connectors and LED indicators for bus status, collision errors, and rack address monitoring
• Broad Compatibility: Works with BMXXBP0600, BMXXBP0400, BMXXBP0800, and BMXXBP1200 models

• Current Consumption: 160 mA at 24 V DC / 22 mA at 3.3 V DC
• Operating Temperature: 32-140°F (0-60°C)
• Humidity Range: 10-95% (non-condensing)
• Protection Rating: IP20
• Hazardous Location: Class I, Division 2 compliant
• Certifications: CE, UL, CSA, RCM, EAC, Merchant Navy
• Standards Compliance: EN 61131-2, EN/IEC 61010-2-201, UL 61010-2-201, CSA C22.2 No 61010-2-201, IACS E10

• 100% brand new with original factory seal
• 1-year manufacturer warranty
• Original packaging with protective cartons
• Shipped within 3-7 days after payment confirmation
• All units undergo pre-shipment testing
