16 Channel Schneider ABE7R16S210 Relay Sub-Base 24V DC High Current Rating

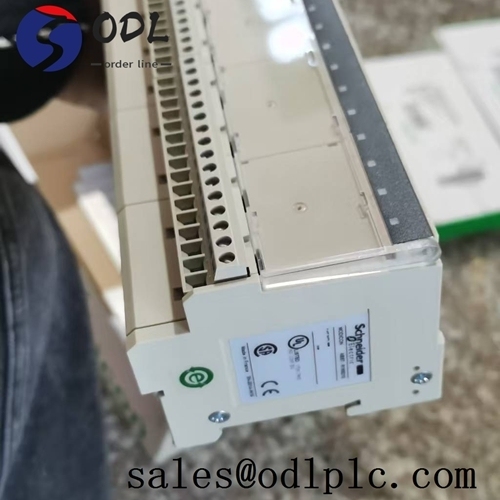

The ABE7R16S210 is a sub-base for soldered electromechanical relays in the Schneider Electric Advantys Telefast ABE7 series. It provides 16 channels of reliable electromechanical relay outputs, designed for industrial automation and control applications. With its robust design and versatile features, this relay sub-base ensures efficient and precise control in various industrial environments.

• 16-Channel Relay Outputs: Provides 16 channels for versatile control applications.
• High Current Rating: Supports a maximum current of 10 A per output common and 5 A per channel for pre-actuator end.
• Versatile Voltage Handling: Rated for volt-free polarity distribution and a supply voltage of 24 V DC at the PLC end.
• Fast Switching: Features a switching frequency of up to 10 Hz no load and 0.5 Hz at load, ensuring rapid response in control systems.
• Durable Construction: Designed for mechanical durability with a lifespan of up to 20 million cycles, ensuring long-term reliability.
• Electrical Durability: Rated for 500,000 cycles under various electrical conditions, including 600 mA at 24 V DC-13, 1500 mA at 230 V AC-12, and 900 mA at 230 V AC-15.
• Wide Operating Temperature Range: Operates efficiently in temperatures ranging from -5°C to 60°C and can be stored between -40°C and 80°C.
• Protective Features: Includes an internal fuse of 1 A (5×20 mm fast blow) at the PLC end for enhanced safety.
• Easy Installation: Features removable terminal blocks and can be fixed by clips on a 35 mm symmetrical DIN rail or by screws on a solid plate with a fixing kit.
• Comprehensive Certifications: Meets multiple international standards including GL, CSA, DNV, UL, and EAC certifications.
