Product Details
Place of Origin: USA
Brand Name: Allen Bradley
Certification: CE
Model Number: 1746-OB16E
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $88-999
Packaging Details: 12.7 cm x 5.1 cm x 15.2 cm
Delivery Time: in stock 1-3days
Payment Terms: T/T
Supply Ability: 50
|
Leading Time:
|
In Stock
|
Warranty:
|
1 Year
|
Weight:
|
0.3kg
|
Delivery Time:
|
3-5days
|
Quality:
|
Brand New & Original
|
Shipping Term:
|
DHL FEDEX UPS TNT
|
|
Leading Time:
|
In Stock
|
|
Warranty:
|
1 Year
|
|
Weight:
|
0.3kg
|
|
Delivery Time:
|
3-5days
|
|
Quality:
|
Brand New & Original
|
|
Shipping Term:
|
DHL FEDEX UPS TNT
|

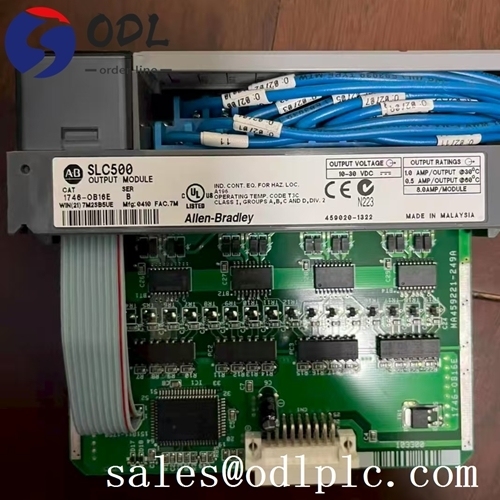

The 1746-OB16E SLC 500 Digital Output Module is an electronically-fused 24V DC signal output module by Allen-Bradley designed for installation in any available slot of a 1746 Chassis. This module features a Removable Terminal Block (RTB) for easy wiring.
Operating within a voltage range of 10-30V DC (source), the module draws a backplane current of 0.135A at 5V DC. It offers a load-dependent 1ms signal delay time for both ON and OFF modes, with maximum output current leakage limited to 1mA in OFF state. Each point supports a minimum current load of 1mA and can handle an inrush current of 2.0A for 2ms (repeating every 1s at 30°C/86°F).
The module dissipates 0.388W per output point (7.6W aggregate) and operates within a temperature range of 0-60°C (32-140°F) at 5-95% relative humidity (non-condensing). It meets NEMA ICS 2-230 noise immunity standards and withstands operational vibration of 2.5G (10-200Hz) with a 30G shock rating.
| Manufacturer | Rockwell Automation |
|---|---|
| Brand | Allen-Bradley |
| Part Number | 1746-OB16E |
| Series | SLC 500 |
| Module Type | Digital DC Output Module |
| Voltage Range | 10-30 Volts DC Source |
| Outputs | 16 |
| Current/Output | 1 or 0.5 amps |
| Current/Module | 8 amps |
| Backplane Current (5V) | 135 milliamps |
| Current/Module (30°C) | 9 amps |
| Applications | High Current |
| Step Response | 60 milliseconds in, 2.5 milliseconds out |
| UPC | 1.06621E+13 |
| UNSPSC | 32151705 |
Rockwell: Allen-Bradley
