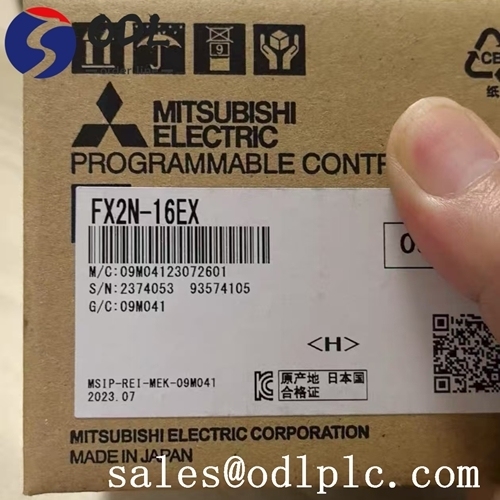

FX2N-16EX Mitsubishi PLC FX2N Modular extension unit 16 inputs 24 VDC sink

Product Description:

Add 16 extra digital inputs to any FX2N base unit with the genuine FX2N-16EX expansion module. This factory-original Mitsubishi Electric unit plugs straight onto the right-hand side of your existing rack—no configuration tools needed—giving you immediate, rock-solid 24 VDC sinking inputs for sensors, switches, and push-buttons.

Key Specifications

Manufacturer : Mitsubishi Electric

Product No : FX2N-16EX

Product type : Input Extension Block

Rated voltage : Internal power supply from the sequencer

Number of input points : 16 points

Input connection shape : Vertical terminal block (M3 screw)

Input signal voltage : DC 24 V ± 10%

Input impedance : 4.3 kO

Input signal current : 5 mA / 24 VDC

Input ON sensitivity current : 3.5 mA or more

Input OFF sensitivity current : 1.5 mA or less

Input response time : About 10 ms

Input signal format : No-voltage contact input NPN or open collector transistor

Input circuit insulation : Photocoupler insulation

Input operation display : LED on the panel when input is ON

Impact resistance : 147 m / s 2 , working time 11 ms, criterion for judgment three times in X, Y, Z directions by sine half-wave pulse is according to IEC 61131-2

Noise immunity : Noise voltage with 1,000 Vp-p, noise width 1 µs, rising 1 ns, with noise si

tor with period of 30 to 100 Hz

Withstand voltage : Between th

Packing & Delivery:

1)100% brand New and Original Factory Seal!

2)Warranty: 1 year

3)Package: Original packing with cartons.

4)Delivery time: Shipped in 3-7 days after payment

5) All the goods will be tested before shipment.
