Product Details
Place of Origin: Japan
Brand Name: Keyence Parts
Certification: CE
Model Number: CZ-V21A
Payment & Shipping Terms
Minimum Order Quantity: 1
Price: $69-998
Packaging Details: 25cm*18cm*5cm
Delivery Time: in stock 1-3days
Payment Terms: T/T
|
Leading Time:
|
In Stock
|
Warranty:
|
1 Year
|
Weight:
|
125 G
|
Delivery Time:
|
3-5days
|
Quality:
|
Brand New & Original
|
Shipping Term:
|
DHL FEDEX UPS TNT
|
|
Leading Time:
|
In Stock
|
|
Warranty:
|
1 Year
|
|
Weight:
|
125 G
|
|
Delivery Time:
|
3-5days
|
|
Quality:
|
Brand New & Original
|
|
Shipping Term:
|
DHL FEDEX UPS TNT
|

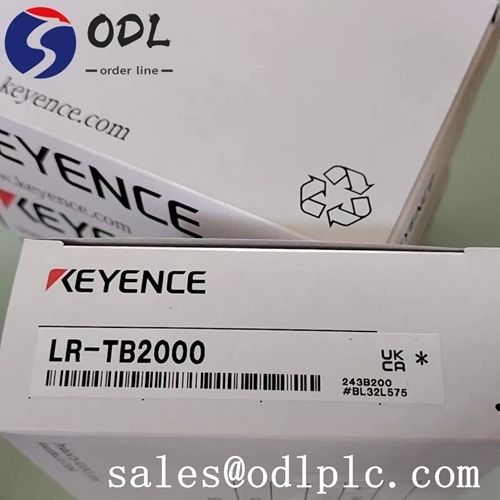

The genuine LR-TB2000 from KEYENCE is a time-of-flight (TOF) laser sensor that delivers reliable 2-meter background suppression in a rugged metal housing. With its built-in 2-m cable and Class 2 visible red laser, this unit is ready for conveyor presence checking, pallet height verification, and high-speed counting—straight out of the box.
| Part Number | LR-TB2000 (brand-new, sealed) |
|---|---|
| Sensing Range | 50 mm - 2 000 mm (adjustable) |
| Laser | Class 2, 650 nm, < 1 mW, visible red spot (Ø 6 mm @ 2 m) |
| Output | PNP/NPN selectable, NO/NC, 100 mA max. |
| Response Time | 1 ms max. |
| Repeatability | ±5 mm |
| Linearity | ±10 mm |
| Supply Voltage | 12 - 24 VDC ±10 %, 30 mA max. (no load) |
| Housing | IP67/IP69K nickel-plated brass body, 30 × 92 mm |
| Connection | 2 m oil-resistant PVC cable (4-wire) |
| Indicators | 4-digit OLED + dual LEDs |
| Tuning | One-touch teach, remote teach wire, or dynamic teach |
| Temp. Range | -25 … +55 °C (no icing) |
| Compliance | CE, UL, RoHS, FDA CDRH Class II |
